レーザー加工機およびシステム

エクサクトウェルド

Superior laser systems for automated precision welding of small metal parts that is ideal for medical products, automotive electronics, sensors, and more.

ExactWeldには、ファイバーレーザー、ロボットによる位置決め、使いやすいソフトウェア、およびオプションのビジョンシステムが搭載されています。これにより、溶接品質、生産歩留まり、プロセスの一貫性、およびオペレーターの生産性を最大限に高めます。

ExactWeld – 主なオプションとパラメータ

Take advantage of galvanometer scanning to perform high-precision welds over complex contours. ExactWeld 230 and 430 are for metals, ExactWeld 230 P and ExactWeld IP are for plastics.

製品仕様

モデル名

レーザー光源

外形寸法(長さ×幅×高さ)(mm)

溶接範囲(mm)

X・Y位置決め

精度(mm)

特長

ExactWeld 230

400 W ファイバーレーザー

1700 × 1000 × 2050

400 × 400

0.06

特許取得済みのSmartWeld™技術により、より広い隙間を埋めることができ、組み付け公差を緩和します。

クイックリリースカップリング(溶接と切断を切り替えるため)

ExactWeld 410

150 W ファイバーレーザー(CW/QSW)

300 W ファイバーレーザー(CW/QSW)

400 W ファイバーレーザー(CW)

700 × 1011 × 2011

250 × 250 mm

0.020 / 0.015 mm

固定光学系、スキャナーヘッド、およびSmartWeld+光学系をご用意しています

クイックリリースカップリング(溶接と切断を切り替えるため)

ExactWeld 430

150 W ファイバーレーザー(CW/QSW)

300 W ファイバーレーザー(CW/QSW)


400 W ファイバーレーザー(CW) 


600 W ファイバーレーザー(CW)

1900 × 2200 × 2130

500 × 400

0.002

注目ブログ

新型コンパクトレーザー微細溶接機

Discover the new Coherent ExactWeld 410 that brings the benefits of CNC laser micro-welding to companies manufacturing high-precision components in small to medium production volumes.


ビデオ特集

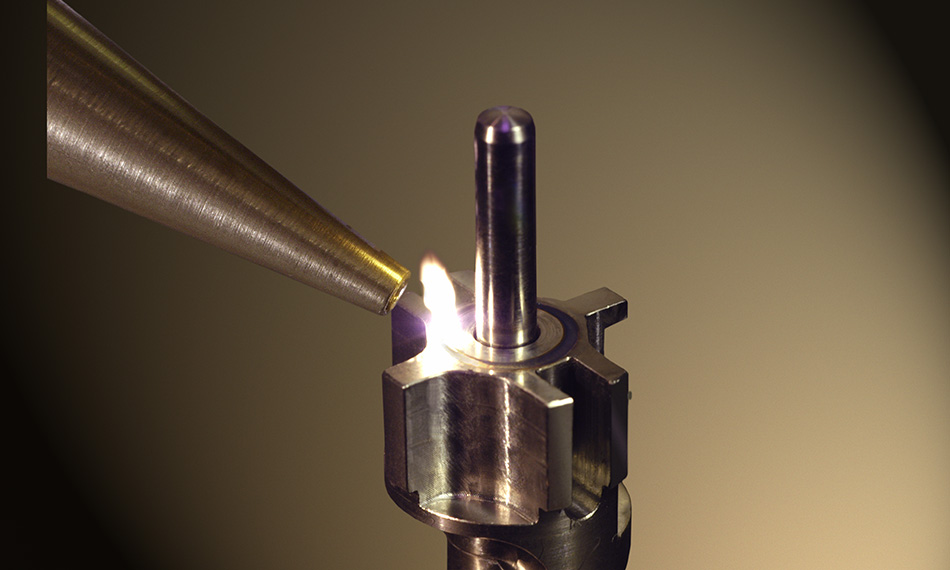

Exactweld 410 – The New Laser Micro-Welder For Medical Devices & High-Precision Components

The Coherent ExactWeld 410 is a compact, but full-featured, fiber laser-based micro laser welding system that incorporates CNC motion to enable reliable production of even complex-shaped weld seams with high precision. This makes it ideally suited for regulated industries, such as medical device manufacturers, makers of precision sensors, and others who don’t have the production floor space and can’t compromise on weld quality.
