New Coherent LabMax Touch Pro Puts Comprehensive Laser Measurement at Your Fingertips
当社の最新型電力計は、高いサンプリングレートと業界最高水準の分析機能に加え、同クラス最大級のタッチスクリーンを備えた工業デザインを採用しています。
June 27, 2022 by Coherent

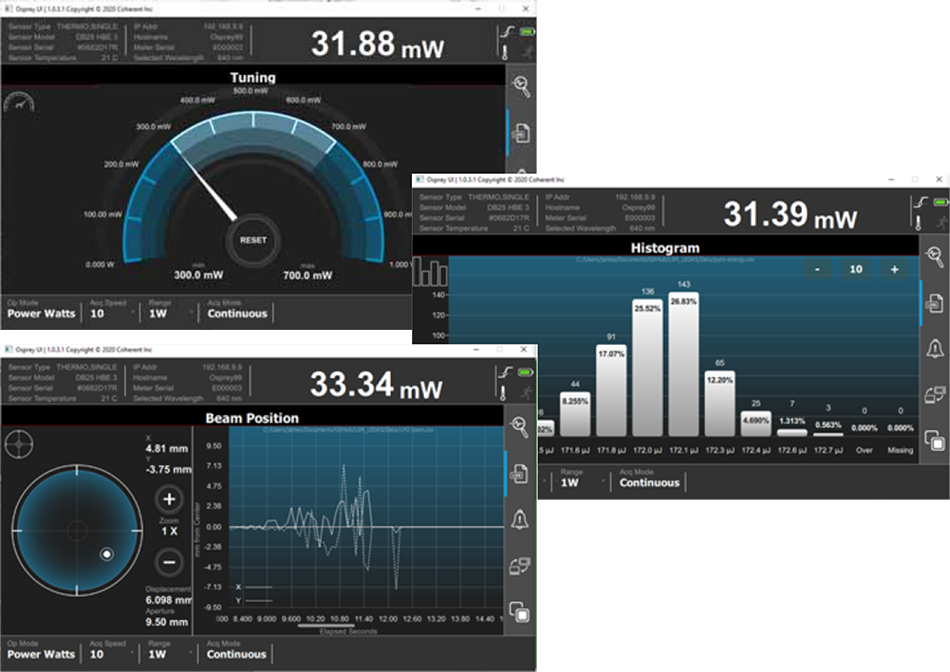

The new Coherent LabMax Touch Pro builds on our long history of delivering accurate power meters that can withstand the harsh conditions of a factory floor as well as the lab. A full-featured laser power and energy measurement instrument system that makes extensive data acquisition and analysis capabilities easy to access through an intuitive, touchscreen interface. For example, measurement data and analytics – including live display, statistics, trending, tuning, histogram, and beam position information – are all reached with just a gesture or two on the display.
LabMax Touch Pro provides full compatibility with the entire, comprehensive lineup of Coherent laser power and energy sensors. This includes thermopile, pyroelectric, and semiconductor sensors, plus our unique PowerMax Pro sensors. Plus it’s fast, with sampling rates as high as 25 kHz for pyroelectric detectors, and up to 1 MHz with our PowerMax Pro sensors (thus enabling pulse shape characterization of high-power lasers). The result is a single tool that delivers high accuracy, traceable measurements of everything from nanowatt CW lasers up to multi-kW, pulsed industrial lasers.
Specifically, with the appropriate sensor, LabMax Touch Pro can measure the following laser output parameters:
- CW出力
- パルスレーザーの平均出力
- Pulse energy
- パルス波形
- 繰り返し率
- ビーム位置
Coherent makes sense of laser measurement
LabMax Touch Proは、パルスレーザーおよびCWレーザーの両方からのデータを分析するための、充実したオンボードツール群も提供しています。これには以下が含まれます：
- Trending of pulse energy and average power for pulsed lasers, or power for CW lasers
- Pulse energy histogram
- Pulse energy statistics (minimum, maximum, mean, range, standard deviation, total energy dosage, stability)
- パルス解析（パルス形状およびパルス幅）
Plus, we haven’t forgotten to include a traditional, analog needle-style “tuning view.” It’s still the easiest way to adjust laser output or optical system alignment, and widely used and beloved by everyone from lab techs and scientists to field service engineers.
And, if you want to port your data into another system, LabMax Touch Pro meters offer three interface options – Ethernet, USB, and RS-232. When connected this way, LabMax Touch Pro can then be controlled by the host system using the Coherent Meter Connection (CMC) Windows® application, or directly through host commands.
LabMax Touch Proは、実験室での最も過酷な測定アプリケーションも簡単にこなせるだけでなく、現場での使用に耐えるコンパクトなサイズ、信頼性、そして堅牢性を兼ね備えています。さらに、PCや産業用制御システムとの連携オプションにより、高品質なレーザー測定データの共有がこれまで以上に容易になります。
Order your Coherent LabMax Touch Pro today.
