電気光学スイッチ

Coherent革新的な電気光学スイッチを採用したCO₂ プリント回路基板 穿孔システムプリント回路基板 、スループットを向上させ、性能を改善します。

Coherent has developed the first commercial electro-optic switch to offer a cost-competitive alternative for PCB drilling and other marking applications that benefit from faster risetime pulses than available from acousto-optic modulators. These modulate on the nanosecond scale, allowing for speeds unobtainable by traditional modulators. The system is supplied as a complete package including switch, TFPs, driver, and power supply.

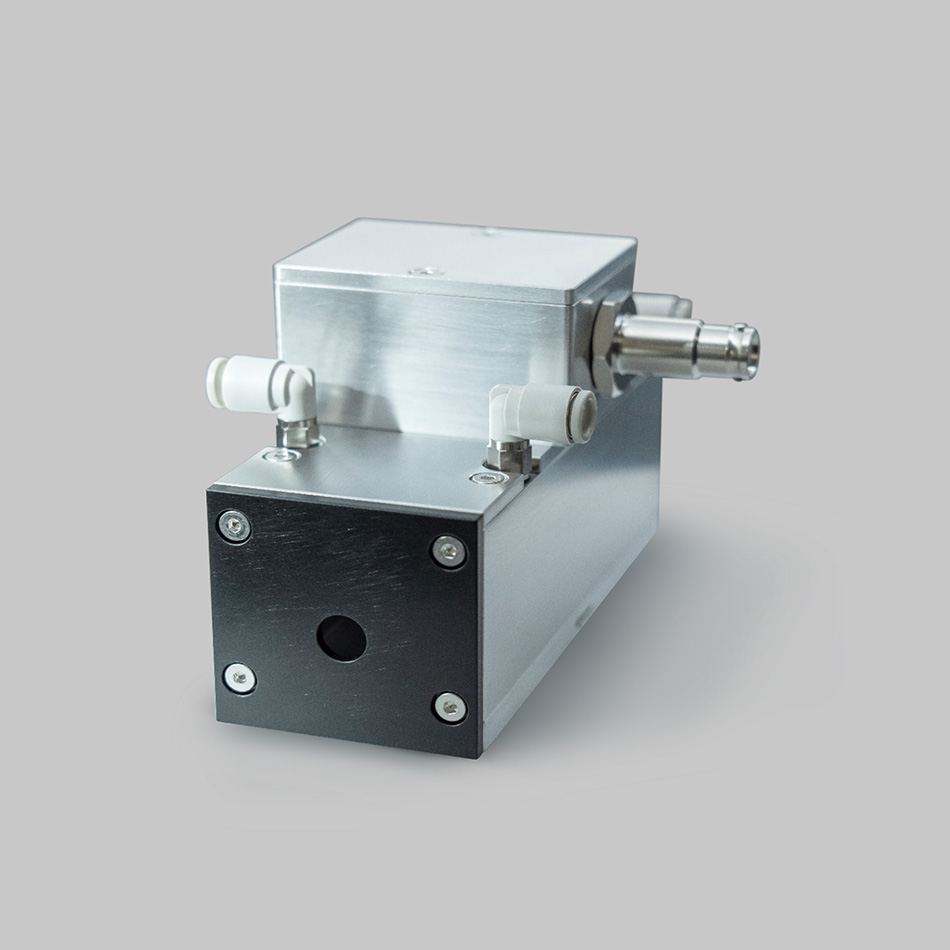

Electro-optic Switch for VIA drilling

特徴
  • Fast rise time for improved material processing
  • No beam deflection for simplified delivery optics
  • Large aperture (9 mm)
  • Handles up to 300 W
  • Comparable insertion loss to AOMs
  • Supplied as a complete system
  • Electro-optic switch, TFPs, Driver, and Power Source
アプリケーション
  • PCB Via Hole Drilling
  • マーキング
  • Engraving
  • Perforating

取扱説明書

Coherent 変調器

Coherent Electro-Optic Modulators act as voltage-controlled waveplates that can operate at nanosecond speeds.
